Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.
13P 2.54Mm Straight Type Pin Header Dual Plastic Half Gold Tin Plating Connector
Product features:Environmental protection and high temperature resistance plastic, high conductivity of brass conductor, durable, stable tin or gold plating performance, oxidation resistance and external factors interference, long service life.
Product function:It is made of brass wire, phosphorus copper wire, copper clad steel wire, pure copper wire, tin plating nickel surface after the bottom, bottom plated nickel.
Application scope: It is widely used in display, digital camera, MP3, MP4, PDA, computer, computer motherboards, mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc..
Name | Pin Header Connector |
Pitch | 2.54mm |
Type | Solder |
Insulator Color | Black |
Insulator | PA6T+30%Glass Fiber, (UL94V-0) |
| Operation Temperature | -40℃ to +105℃ |
| Contact Resistance | 30mΩ Max at DC 3A |
| Current Rating | 3A |
Contact Material | Brass |
Insulation Resistance(min) | 1000M ohm Min |
Contact Plated | Gold/Tin over Nickel |
Insulator material | PA6T PBT LCP |
Packing | Reel&tape packing |
| OEM/ODM | Accepted |
Mounting Type | Straight Type |

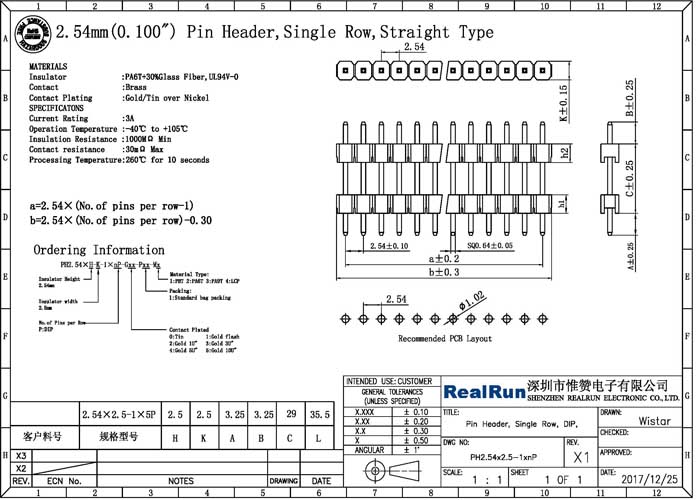

Please feel free to contact us and we will send the drawings of you need.
Packing & Shipping
1. Housing: bag /SMT Wafer:tape and reel/terminal:tape and reel .Normally,we use the carton with good quality to put all goods in it in case any damage during the delivery.
2. The way of shipment : by sea, by air, or express such as DHL/TNT/UPS etc.
3. Delivery Time: normally 3~7wroking dasy. For urgent orders ,we can shorten the delivery time accordingly.
Why choose RealRun for supplier?
A: 1. RealRun has more than 15 years experiences in the electronic connectors area.
2.The goods with good quality and service are sold to more than 70 countries.
3.More, all the goods have the relevant approvals and the service is excellent if you will consider us to be your supplier.
4.One of the biggest electronic connectors supplier in the China mainland.
Feedback:
Buyer’s early confirmation will be highly appreciated after receiving the goods.
Because your feedback is vital to our business’s development, we sincerely invite you to leave positive feedback for us, if you are satisfied with our products and services.
Product Tags:
|
|
Gold Tin Plating PA6T Straight Header Connector 13P Dual Plastic PBT Images
|
